Product introduction

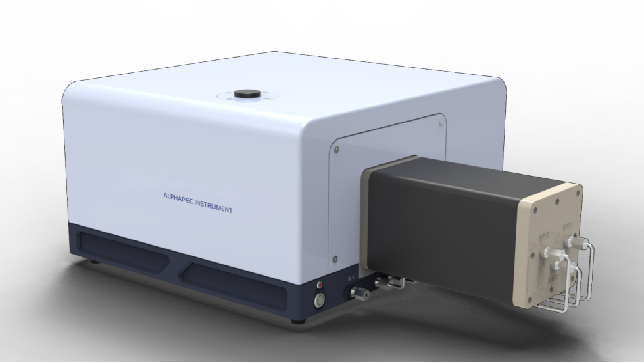

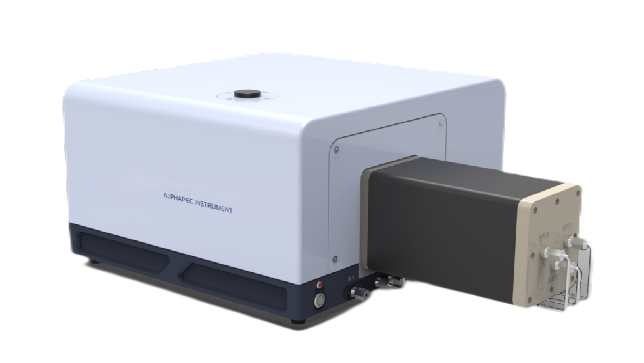

ALPHAPEC 5055 scientific Fourier transform infrared gas analyzer is a high-precision gas analyzer independently developed by our company. Based on the Fourier transform infrared detection principle, it can detect on-site gas concentration in real time and quickly analyze gas components. , continuous, fully automatic identification and quantification, the product has excellent sensitivity, and some gas substances can reach ppb level. It is suitable for many application fields such as industrial applications, gas composition analysis, catalytic process research, gas impurity determination, scientific research, biogas analysis, etc.
The scientific Fourier infrared gas analyzer uses Fourier infrared spectroscopy technology as the detection principle. It is equipped with precision-designed optical and mechanical components, high-precision control acquisition and stable and reliable hardware circuits. It uses advanced correction algorithms on the host computer software. The measurement data is corrected, and it can quickly and accurately detect and identify hundreds of organic or inorganic compound functional groups, and conduct mixture analysis and quantitative analysis.
Features
Powerful Detection Capability
+ High sensitivity, all reflectors are gold-plated mirrors, with excellent environmental resistance
+ The instrument is stable, using a space cube angle mirror, and the optical path is permanently collimated
+ High degree of intelligence, able to test all parts of the instrument and issue test reportsAdvanced
Advanced Software algorithms
+ Meet the detection and identification of hundreds of organic compound functional groups
+ Fast response, qualitative and quantitative analysis of compounds
+ Instrument self-test, self-calibration, usage status monitoring
+ Fully automatic gas temperature, pressure, water vapor, CO2 compensation
|
Serial Number
|
Item
|
Sub-project
|
Technical Parameters
|
|
1
|
Monitoring Parameters
|
Monitoring Type
|
Over a hundred organic functional groups, user-customizable library
|
|
2
|
Spectral Range
|
750-4500cm-1
|
|
3
|
Spectral Resolution
|
0.5cm-1, 1cm-1, 2cm-1, 4cm-1, 8cm-1 optional
|
|
4
|
Detection Accuracy
|
Better than2%F.S
|
|
5
|
Detection Range
|
ppb~percentage concentration
|
|
6
|
Gas Detection Limit
|
＜0.2ppm@CO
|
|
7
|
Power Consumption
|
＜100W
|
|
8
|
Interface Parameters
|
Communication
|
USB or network port
|
|
9
|
Power Supply
|
220V/24V Adapter
|
|
10
|
Physical Parameters
|
Dimensions
|
620×410×245mm
|
|
11
|
Weight
|
≤30 kg
|
|
12
|
Chamber Specifications
|
Air chamber type
|
High temperature white pool
|
|
13
|
Gas Optical Path Length
|
5m
|
|
14
|
Chamber Volume
|
≤ 0.6L
|
|
15
|
Window
|
ZNSE/KBR
|
|
16
|
Temperature (Maximum)
|
200℃
|
|
17
|
Pressure (Maximum)
|
2bar
|
|
18
|
Environmental Adaptability
|
Protection Level
|
IP65
|
|
19
|
Operating Temperature
|
0~40℃
|
|
20
|
Storage Temperature
|
-10~50℃
|
Application field
The scientific Fourier transform infrared gas analyzer is rich in functions and simple to operate. After connecting the power cord and turning it on for 2 minutes to preheat, it can detect and analyze hundreds of organic or inorganic compound functional groups, and perform mixture identification and quantitative analysis. It is widely used in laboratory testing fields such as chemical industry, medicine, teaching, scientific research, and process control.
