Product introduction

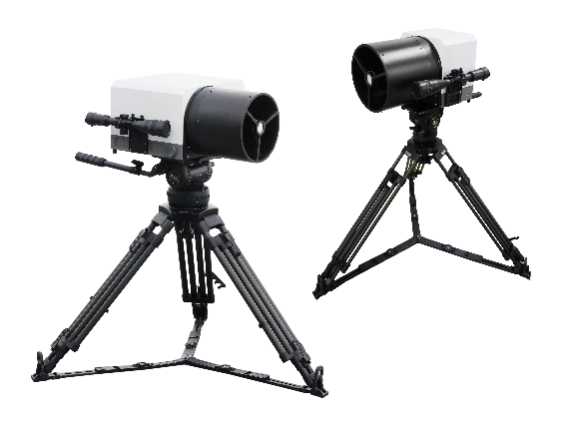

ALPHAPEC 5300 open Fourier infrared remote sensing analyzer uses open Fourier infrared remote sensing analysis technology as the detection principle. The host and light source adopt through-beam mode. It is equipped with a high-resolution double-twist scanning interferometer and a high-precision designed optical machine. Components, high-precision control acquisition and stable and reliable hardware circuits, while using advanced correction algorithms to correct measurement data, can qualitatively, quantitatively, quickly and accurately detect and identify hundreds of toxic and harmful chemical gases or chemical warfare agents online in real time. and conduct quantitative analysis.
Features
Powerful detection capabilities
+ Using high-performance and long-life Stirling cooling type MCT detector, the detection sensitivity reaches ppb level
+ Equipped with sophisticated infrared light source, the monitoring path can reach more than 100m
+ High stability optical-mechanical hardware system to meet 24H/7Day real-time monitoring
Advanced Software Algorithms
+ Meets the requirements for detection and identification of hundreds of industrial compounds (TICs) and chemical warfare agents (CWAs)
+ Under complex environmental background, rapid response within 3s, qualitative and quantitative analysis of compounds within 10s
+ Optimized algorithms for instrument self-inspection, self-calibration, path interference diagnosis, water vapor compensation, etc.
Rich product features
+ Equipped with a multi-functional monitoring terminal to meet user needs such as daily environmental monitoring, threat identification, sound and light alarm, information storage and playback
+ Equipped with various communication interfaces such as network port, 4G, WiFi, etc., multiple devices can work together to meet various application scenarios
+ Product functions support customization to better serve users
extremely low maintenance costs
+ Exquisite structural design, simple installation and convenient operation
+ Using Fourier transform infrared spectroscopy detection technology, long-distance non-contact sampling + No consumables, no radioactive sources, no secondary pollution, and extremely low maintenance costs
Technical indicators
Project |
Sub-item |
Technical Parameters |
Monitoring parameters |
Monitoring type |
Hundreds of chemical substances or agents (The factory library contains more than 40 types, which can be expanded according to user needs, up to 460 types) |
Sensitivity |
0.1~10ppm |
|
resolution |
4cm-1 (conventional);1cm-1 (Highest) |
|
Scan speed |
10 frames / s. |
|
Monitoring distance |
≥ 100m |
|
Preheat time |
≤ 5min |
|
Response time |
≤ 3s |
|
recognition time |
≤ 10s |
|
operating hours |
24H/7Day |
|
Power consumption |
≤ 100W/220V |
|
Interface parameters |
communication |
Network port / 4G ( optional ) |
power supply |
AC 220V |
|
Physical parameters |
the host |
≤ 560 mm×370 mm ×260 mm |
≤ 25kg |
||
light source |
≤ 420 mm×250 mm×270 mm |
|
≤ 10kg |
||
Electric control box |
≤ 400 mm×280 mm×200 mm |
|
≤ 5kg |
||
Environmental adaptability |
Operating temperature |
-10℃ ~50℃ |
Storage temperature |
-30℃ ~60℃ |
Application area
It can be widely used in public environmental monitoring fields such as customs, airports, shopping malls, and chemical industry parks
