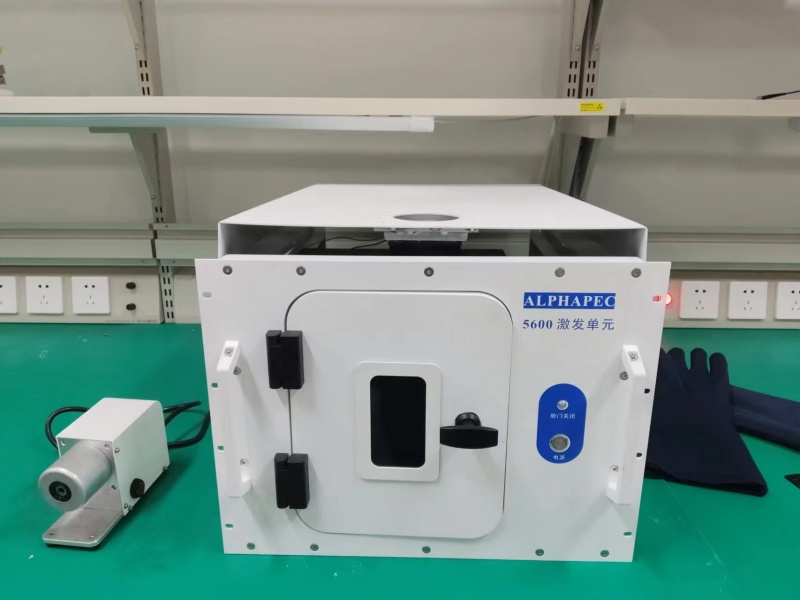

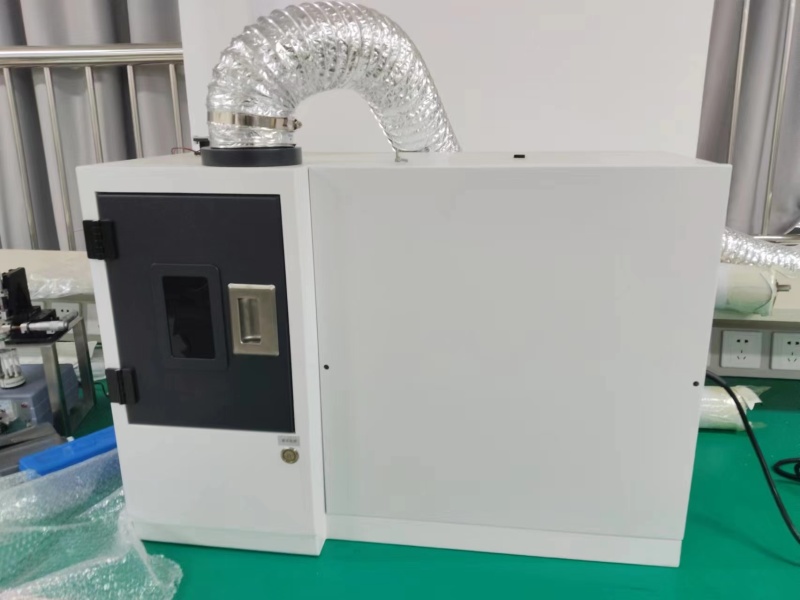

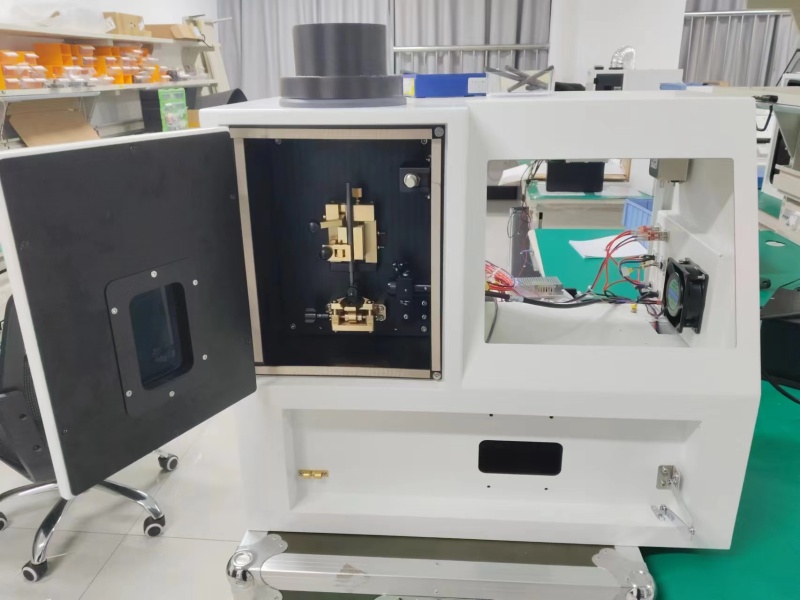

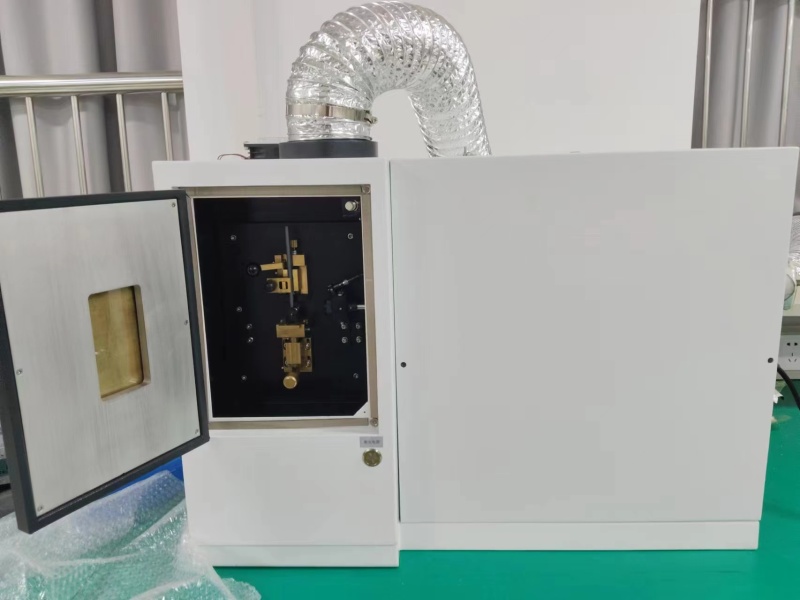

ALPHAPEC 5600 Oil Atomic Emission Spectrometry Detection And Analysis System

The oil atomic emission spectrometry detection and analysis system is suitable for elemental analysis of various new oils or reused lubricating oils, hydraulic oils, light fuel oils (gasoline and diesel), and turbine flushing water.
Description Review
Description

Product introduction

ALPHAPEC 5600 oil atomic emission spectrometry detection and analysis system belongs to the rotating disk electrode atomic emission spectrometer (RDE-AES). RDE-AES analysis technology is a standard method for element detection in oil recognized by the global market. It is specially used for accurate and quantitative determination of dissolution and suspension. The composition and concentration of trace elements in each synthetic or mineral lubricating oil. It is widely used in the military, aviation, marine, land transportation, mining, power plants and oil testing commercial laboratories. It is suitable for all kinds of new oil or reused lubricating oil, hydraulic oil, light fuel oil (gasoline and diesel) Elemental analysis of , heavy oil, grease oil, antifreeze, industrial water and turbine flushing water.

Features

1.Fully meets NB/SH/T 0865, ASTM D6595, ASTM D6728 standards;

2.Appearance adopts standardized chassis design;

3.Suitable for long distance and frequent transportation;

4.Can detect 25 elements simultaneously;

5.Easy to operate, no sample preparation required;

6.Test completed in 30 seconds;

7.High detection accuracy, detection limit reaches sub-ppm level;

8.High-precision temperature control design;

Technical Indicators



Parameter name

Performance parameter





Wavelength range



203nm ~ 810nm



Spectral resolution





Better than 30pm





Optical path focal length



500mm





Single sample dosage





≤ 2mL





Detect elements



Simultaneous amount of 25 elements: Al, Ba, B, Ca, Cr, Cu, Fe, Pb, Li, Mn, Mg, Mo, Ni, P, K, Si, Sb, Ag, Na, Sn, Ti, W, V, Zn, Cd



The detection limit



≤ 1ppm





Precision and Bias



Meet NB/SH/T 0865, ASTM D6595, ASTM D6728 standards





Light room thermostatic control



Control accuracy is ±0.1℃



Operating temperature



0 -40℃





Relative humidity





0-90%





Operating Voltage



AC220V ± 10%/50Hz

Working power

500W (during testing)

physical dimension

510mm (width) x740mm (depth) x680mm (height)

weight

≤ 95kg



Application Field

Widely used in military, aviation, marine, land transportation, mines, electronics and oil testing commercial laboratories and other fields.
